德国Siebert数字显示器SX102系列

德国Siebert数字显示器SX102系列

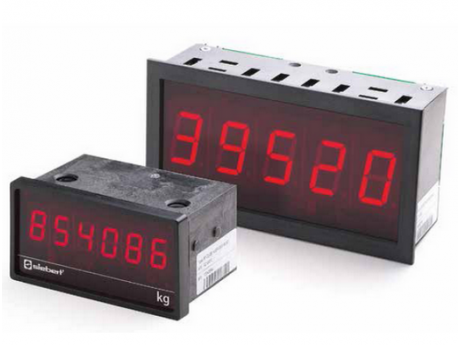

Siebert数字显示器S102和SX102系列是专为安装在前面板或开关面板安装而设计的紧凑型设备。数字版本的字符高度为14或25 mm，字母数字版本18或30 mm。

Siebert数字显示器S102系列 技术数据：

Siebert数字显示器数据接口:

Profibus DP.........S102-xx/xx/xx-xxx/xx-K0

Modbus RTU.........S102-xx/xx/xx-xxx/xx-M0

RS485/RS232.........S102-xx/xx/xx-xxx/xx-S0

20 mA TTY/RS232.........S102-xx/xx/xx-xxx/xx-T0

BCD/二进制 S102-xx/xx/xx-xxx/xx-P0

Analog.........S102-xx/xx/xx-xxx/xx-A0

计数器.........S102-xx/xx/xx-xxx/xx-Z0

Siebert数字显示器LED color:

Red.........S102-xx/xx/xR-xxx/xx-xx

Green.........S102-xx/xx/xG-xxx/xx-xx

电源.........24 V DC ±15 %

防护类型.........IP40 front, optional IP65 (housing 72 x 48 and 96 x 48 mm)

.................IP65 front (housing 144 x 72 mm)

连接技术.........插入螺丝式端子，Profibus 9针sub-D插座

Character height 14 mm  4 digits  6 digits

Type designation  S102-04/14/0x-000/0B-xx  S102-06/14/0x-000/0B-xx

Dimensional drawing  A  B

Character height 25 mm  4 digits  5 digits

Type designation  S102-04/25/0x-001/0B-xx  S102-05/25/0x-001/0B-xx

Dimensional drawing  C  C

Siebert数字显示器SX102系列 技术数据：

数据接口

Profibus DP.........SX102-xx/xx/xx-xxx/xx-K0

Modbus RTU.........SX102-xx/xx/xx-xxx/xx-M0

RS485/RS232.........SX102-xx/xx/xx-xxx/xx-S0

20mA TTY/RS232.........SX102-xx/xx/xx-xxx/xx-T0

LED color

Red.........SX102-xx/xx/xR-xxx/xx-xx

Green.........SX102-xx/xx/xG-xxx/xx-xx

电源.........24 V DC ±15 %,

防护类型.........IP40 front, optional IP65 (housing 96 x 48 mm)

..................IP65 front (housing 144 x 72 and 240 x 72 mm)

连接技术.........插入螺丝式端子，Profibus 9针sub-D插座
